LH75WMAWLGCXEN
75" UHD 4K Interactive Display
Imagine a new era of learning
Samsung Flip 3 transforms the classroom through interactive learning experiences, giving educators the resources needed to create effective and modern lessons. With more software and connectivity options, and intuitive interaction features, Flip 3 creates engaging learning environments.
Advanced touchscreen technology
Ideate and create with interactive touchscreen technology. Sketch out ideas with swift drawing speed at just 34ms of latency or paint with real-world accuracy with 2,048 points of thickness built directly into the display.
Intuitive and natural drawing
Interactions are intuitively built for problem solving and creating. Use any object near you to bring your ideas to life. Flip 3 distinguishes between inputs from thin or thick objects to simulate on-screen writing or and highlighting. Or simply erase content with your finger or palm.
Antimicrobial Coating
Thanks to an Antimicrobial Coating, Samsung Flip 3 inhibits microbial growth to help protect against certain bacteria. This enables teachers and students to stay focused on what’s on the screen with peace of mind.
Shatterproof protection
Samsung understands that accidents happen. To protect students and educators, the Flip 3 screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.
Open Pluggable Specification support
Use preferred third-party education solutions and connect to school information systems with the built-in OPS (Open Pluggable Specification) slot. Flip 3 is a centralized source for classroom learning and school-wide notifications such as principal announcements, weather alerts and fire drills.
Embedded learning resources
Samsung partnered closely with Boxlight, a leading US education solution provider, to deliver fully optimized and innovative education software* directly to Flip 3. Now, educators can access Boxlight’s extensive catalog of versatile learning content for hassle-free lesson planning.
Boundless and versatile accessibility

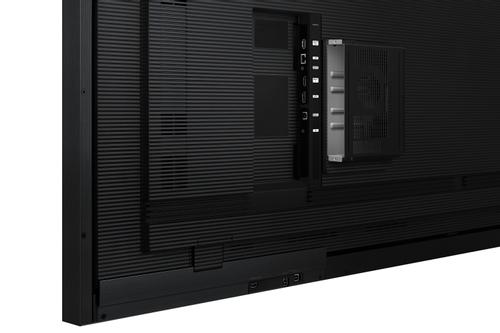

Flip 3 features multiple connectivity options, including USB, HDMI, DP, and OPS, as well as wireless screen sharing, to ensure educators can easily connect any device to access their content. With web browser support, educators can also source online educational material directly through Flip 3.
Powerful hardware
Power faster device interactions with less load time with 20% more memory (RAM). Or download and save more interactive content while enjoying consistent, reliable performance thanks to two times more storage capacity.
Specifications:
-
Display
-
Diagonal Size
75"
-
Panel Type
VA
-
Resolution
3,840 x 2,160
-
Pixel Pitch (HxV)
0.42975 x 0.42975 (mm)
-
Brightness (Typical)
350 (220 with glass)
-
Contrast Ratio
4000:1(without glass)
-
Viewing Angle (H/V)
178/178
-
Response Time
8ms
-
Colour Gamut
72%
-
Glass Haze
2%(without glass)
-
H-Scanning Frequency
30~81kHz
-
Maximum Pixel Frequency
594Mhz
-
V-Scanning Frequency
48~75Hz
-
Dynamic Contrast Ratio
N/A
-
Connectivity
-
HDMI In
2
-
DP In
1
-
DVI In
N/A
-
Tuner In
N/A
-
USB
2(Main/Tray), 2.0/3.0 External(Tray)
-
IR In
N/A
-
HDBaseT In
N/A
-
Audio In
N/A
-
Audio Out
Stereo Mini Jack
-
Video Out
Yes
-
Power Out
N/A
-
RS232 In
Yes
-
RS232 Out
N/A
-
RJ45 In
Yes
-
RJ45 Out
N/A
-
WiFi
Yes
-
3G Dongle
N/A
-
Bluetooth
Yes
-
Power
-
Power Supply
AC100-240V 50/60Hz
-
Power Consumption (Off Mode)
N/A
-
Power Consumption (On Mode)
275W
-
Power Consumption (Sleep Mode)
0.5W
-
Dimension
-
Set Dimension (WxHxD)
1721.0 x 1019.3 x 75.2 mm
-
Package Dimension (WxHxD)
1905 x 1182 x 287 mm
-
Weight
-
Set Weight with Stand
58.3 kg
-
Package Weight
71.7 kg
-
Operation Conditions
-
Temperature
0℃~40℃
-
Humidity
10 ~ 80%, non-condensing
-
Mechanical Specification
-
VESA Mount
400 x 400 mm
-
Bezel Width
18.9mm(T/L/R), 39.2mm(B)
-
Frame Material
Metal (Aluminum)
-
Optional Feature
-
Touch
Yes
-
Mount
Yes (Model Name : WMN6575SE)
-
Stand
N/A
-
Eco
-
Energy Efficiency Class
A+
-
Touch
-
Certification and Compliance
-
EMC
Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 CCC(China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015 GOST(Russia/CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005
-
Safety
CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
